VW Baywindow Bus - 185R14C Tire & Sidewall Photos

by Richard Atwell
(c) Copyright 2006-2022

badge

Index:

Vintage Tires (1970's - 1990's):

  1. Michelin X
  2. Michelin MX
  3. Michelin XZX
  4. Metzler Monza
  5. Dunlop SP 68
  6. Continental TS 771
  7. Continental RS771
  8. Continental Contrans
  9. Continental Bias Ply
  10. Goodyear Ultra Grip G800
  11. Pirelli Cinturato
  12. 74/75 Folding Spare

No Longer Available:

  1. Bridgestone RD-603
  2. Continental CR21
  3. Cooper SRM II
  4. Hercules G4000 LT
  5. Nokian Hakkapeliitta CQ
  6. Nokian NRC2
  7. Jupiter SV-820
  8. Signet SV-820
  9. Woosung SV-820
  10. Vredestein Transport Steel
  11. Continental Vanco 2
  12. Continental Vanco 8
  13. Federal EcoVan
  14. Hankook RA08
  15. Hero Vanteza
  16. Michelin Agilis 61
  17. Michelin Agilis 81
  18. Nokian Hakka C Van
  19. Nankang N-810
  20. Vredestein Comtrac
  21. Yokohama Y356

NLA Winter Tires:

  1. Nokian Hakkapeliitta CS
  2. Nokian Hakkapeliitta C2

This page can take a while to load in your browser because of all the photos.

I collect photos of tires to aid as a buyers guide. Models and styles come and go so it also serves to record the details of each tire in the event a suitable tire from the same manufacturer becomes available in future.

As you will see below, over the last 20+ years the tires specs haven't changed, only the selection and availability has changed; tread styles and construction ply designs come and go. NLA means no longer available.

Tires are listed in no particular sort order but the vintage group on the left are grouped together so we can remember them. It's interesting to see what the original tires looked like and what their specs were. The date of manufacture if known is shown (in parenthesis).

At present, the selection of 185R14C tires is very limited: e.g. Hankook RA18.

If you would like to add to this collection you can email me for more info. If you also have a vintage tire in your garage not listed here, I am especially interested.

A tire that says 8PR means it's 8-ply rated. When the number of plies listed is less than 8 this simply means the strength is equivalent to an 8-ply bias ply tire rating. 6PR has a similar meaning.

Most radial plies are now made from steel, nylon and polyester. Rayon is out of fashion as a tire ply and kevlar is starting to appear but I haven't seen a bus tire made with Kevlar to date. When referring to tire plies below, poly is short for polyester.

My list of Underspec truck tires is a must read.


Vintage Tires:

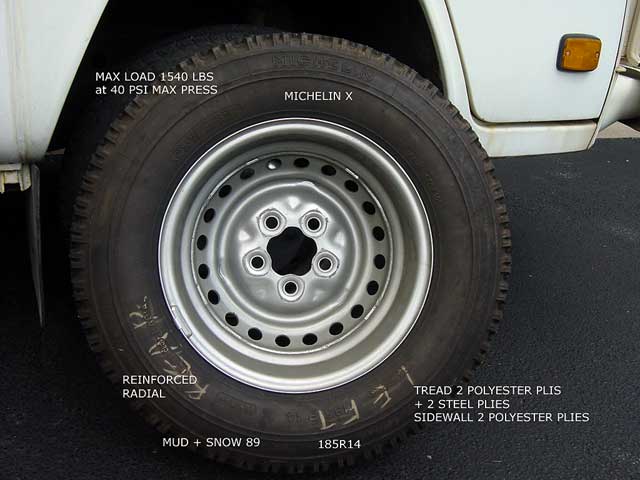

Michelin X (1980) - NLA
Purchased from VW dealer

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14 94 n/a 2 poly + 2 steel 2 poly reinforced 1540 lbs 40 psi Belgium

Michelin MX (July '00) - NLA - Photos courtesy of Chris Hinkley
Purchased used from GoWesty!

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14 94R n/a 2 poly + 1 polyamide + 2 steel 2 poly 1540 lbs reinforced 40 psi United Kingdom

Michelin XZX (made Oct '99) - NLA - Photos courtesy of Karl Von Salzen
Found in Junkyard

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14 94R n/a 2 steel + 2 rayon 2 rayon 1540 lbs reinforced 40 psi Germany

Metzler Monza (made Dec '95) - NLA - Photos courtesy of Matt Cuddy
Came from Previous Owner

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C n/a n/a 2 nylon + 4 rayon 2 nylon LRC 1675 lbs 55 psi Germany

Dunlop SP 68 - NLA
Found in Westy spare tire box

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14 n/a n/a n/a n/a n/a n/a n/a Germany

Continental TS 771 (Jan '90) - NLA - Photos courtesy of Karl Von Salzen
Found in Junkyard

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14 94R S 2 rayon + 2 steel + 2 nylon 2 rayon reinforced 1540 lbs 40 psi Germany

Continental RS771 (Jan '94) - NLA - Photos courtesy of Karl Von Salzen
Found in Junkyard

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 99 N 2 rayon + 1 steel + 1 nylon 2 rayon LRC 1710 lbs 55 psi Germany

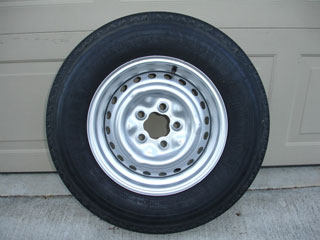

Continental Contrans (Nov '94) - NLA
Purchased from VW dealer

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 99 Q 2 poly + 2 steel + 1 nylon 2 poly LRC 1710 lbs 55 psi Great Britain

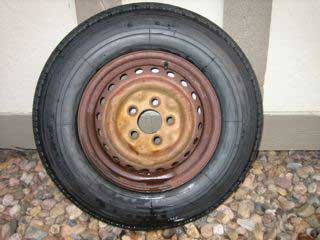

Continental Bias Ply - NLA

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
n/a n/a n/a n/a n/a n/a n/a n/a n/a

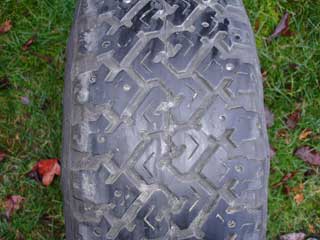

Goodyear Ultra Grip G800 (1985) NLA

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C n/a n/a n/a n/a n/a 6PR n/a Sweden

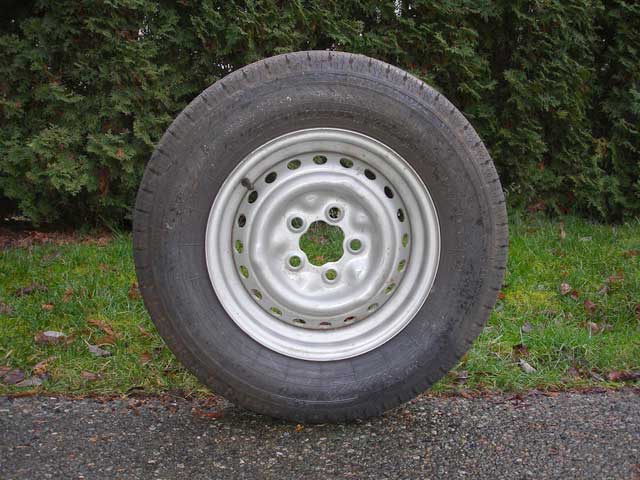

Pirelli Cinturato (1972) NLA
Original unused spare

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C n/a n/a n/a n/a n/a 6PR n/a Germany

74/75 Folding Spare (by BF Goodrich) - NLA - Photos courtesy of Ed Woenker
Came with every 74/75 Westfalia

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
F78-14 n/a n/a 2 rayon + 1 nylon 2 rayon LRB 1500 lbs 32 psi USA

That is not a typo: the folding spare is a Load Range "B" tire. This normally means there are a maximum of 4 plies (tread and sidewall).


No Longer Available:

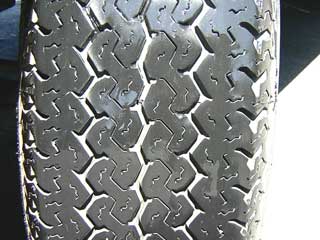

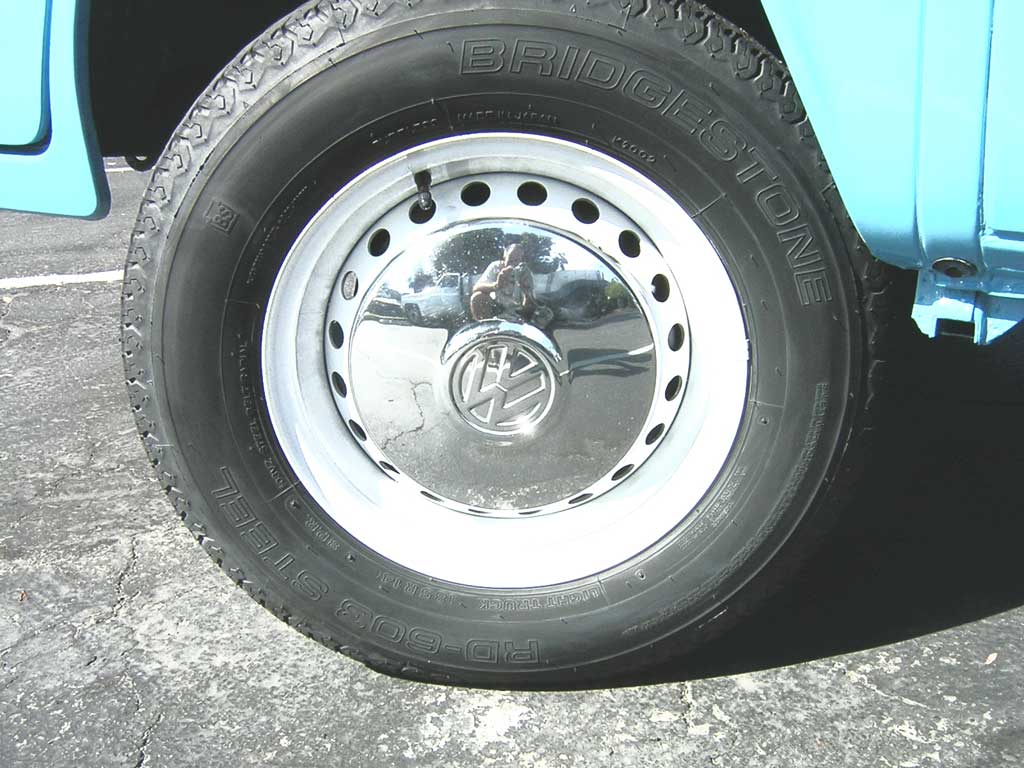

Bridgestone RD-603 (Oct 1999) - Photos courtesy of Adam McKinley
Purchased from Craigslist

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14 LT n/a n/a 2 steel + 2 poly 2 poly 1850 lbs LRD 65 psi Japan

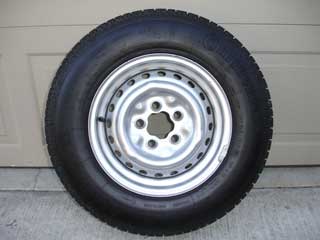

Continental CR21 (Nov '01) - NLA
Purchased from Discount Tire

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14 94R R 2 poly + 2 steel + 2 nylon 2 poly reinforced 1540 lbs 40 psi Sweden

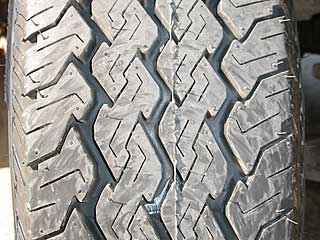

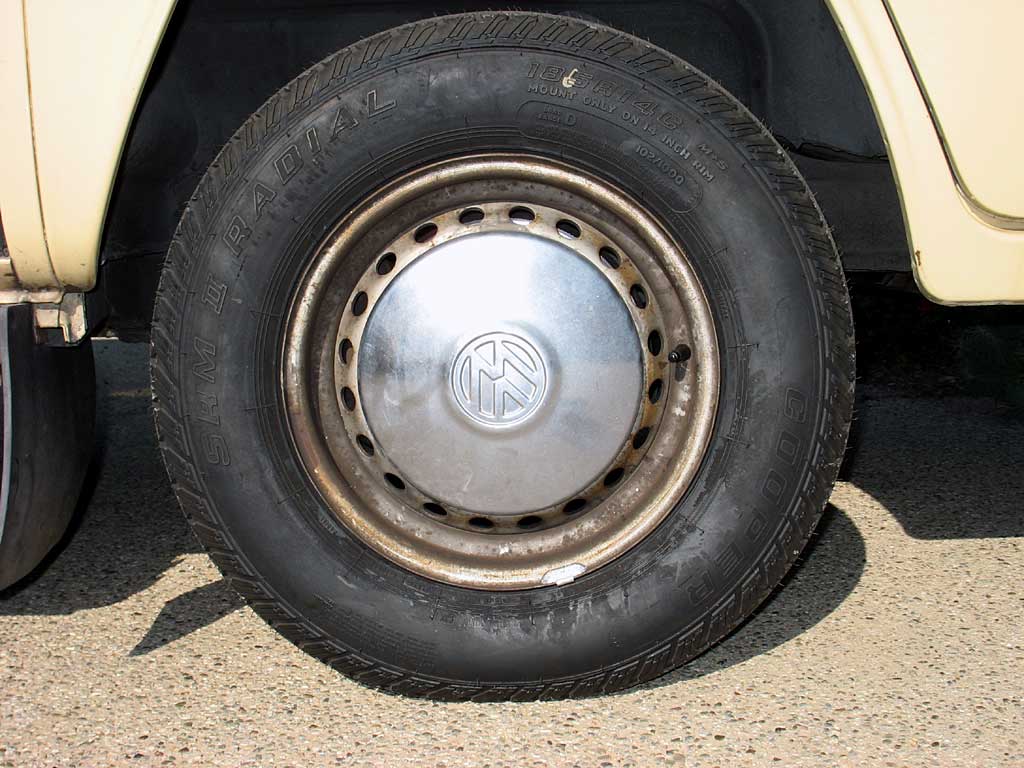

Cooper SRM II (made Nov '05) - Photos courtesy of Bret Giuliani
Purchased at Express Tire in San Marcos, CA - (alternate site)

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 102 Q 2 steel + 2 nylon 2 poly 1875 lbs LRD 65 psi USA

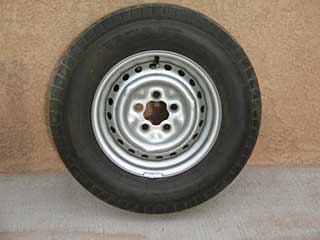

Hercules G4000 LT - Photos courtesy of Phil Eslin
Product Page at German Supply

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C n/a n/a n/a n/a 1875 lbs LRD 65 psi

Nankang N-810 - Photos courtesy of Troy Wical

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 100 R 2 poly + 2 steel + 1 nylon 2 poly 1870 lbs LRD 64 psi Taiwan

Nokian Hakkapeliitta CQ (Nov '03) - Photos courtesy of Peter Steckhan
Purchased from Kal Tire - Product Page at Nokian

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 102 Q 2 steel + 2 poly + 1 nylon 2 poly 1873 lbs LRD 65 psi Finland

Nokian NRC2 (Jan '05) - the best summer tire you can buy
Purchased from TireFactory.net

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 102 S 2 steel + 2 poly + 1 nylon 2 poly 1873 lbs LRD 65 psi Finland

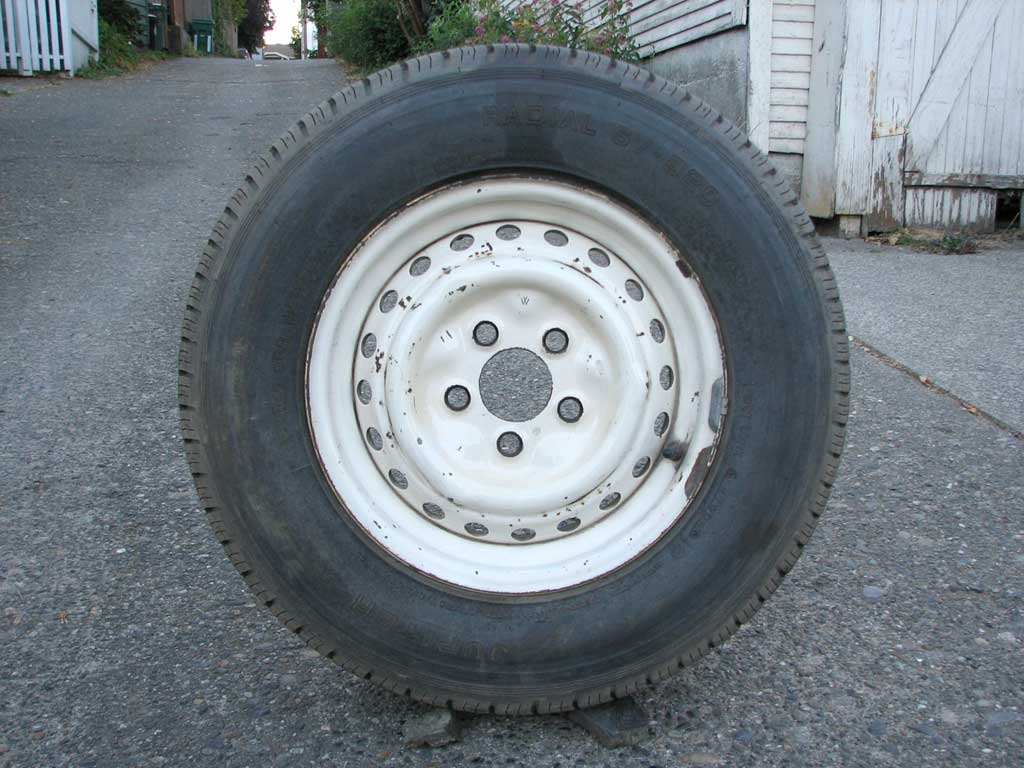

Jupiter SV-820 (March '04) - Photos courtesy of Evan Cabodi
Purchased from Les Schwab - (Product Page at Nexen Tire)
Known Clones: Capitol/Geostar/Signet/Woosung

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 102 n/a 2 poly + 2 steel 2 poly LRD 1875 lbs 65 psi Korea

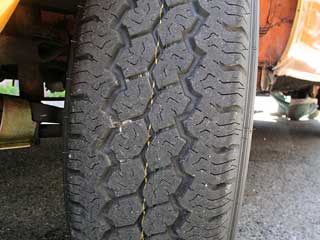

Signet SV-820 - Photos courtesy of Scott Lyons

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 102 P n/a n/a LRD 1875 lbs 65 psi Korea

Woosung SV-820 (March '04) - Photos courtesy of Clarke Bayles

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 99 P 2 poly + 2 steel 2 poly LRC 1710 lbs 55 psi Korea

Vredestein Transport Steel (Jan '01) - Photos courtesy of Don
Product Page at Tyreland

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 102 N 2 steel + 2 rayon + 1 nylon 2 rayon 1875 lbs LRD 65 psi Holland

Continental Vanco 8 (May '06) - Photos courtesy of Chris Hinkley
Purchased at Five Points Tire - Product Page at Tire Rack

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 102 Q 1 poly + 1 steel + 2 nylon 1 poly 1874 lbs LRD 65 psi Czech Republic

Hankook RA08 (Nov '05) - Photos courtesy of Joe Bartoli
Purchased from Hankook dealer, Dexter's Tire and Auto - Product Page at Bus Depot and Hankook USA

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 102 Q 2 poly + 2 steel + 1 nylon 2 poly LRD 1874 lbs 65 psi Korea

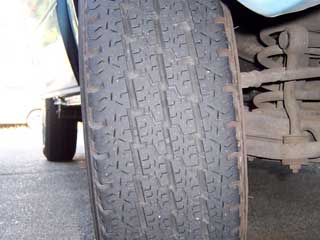

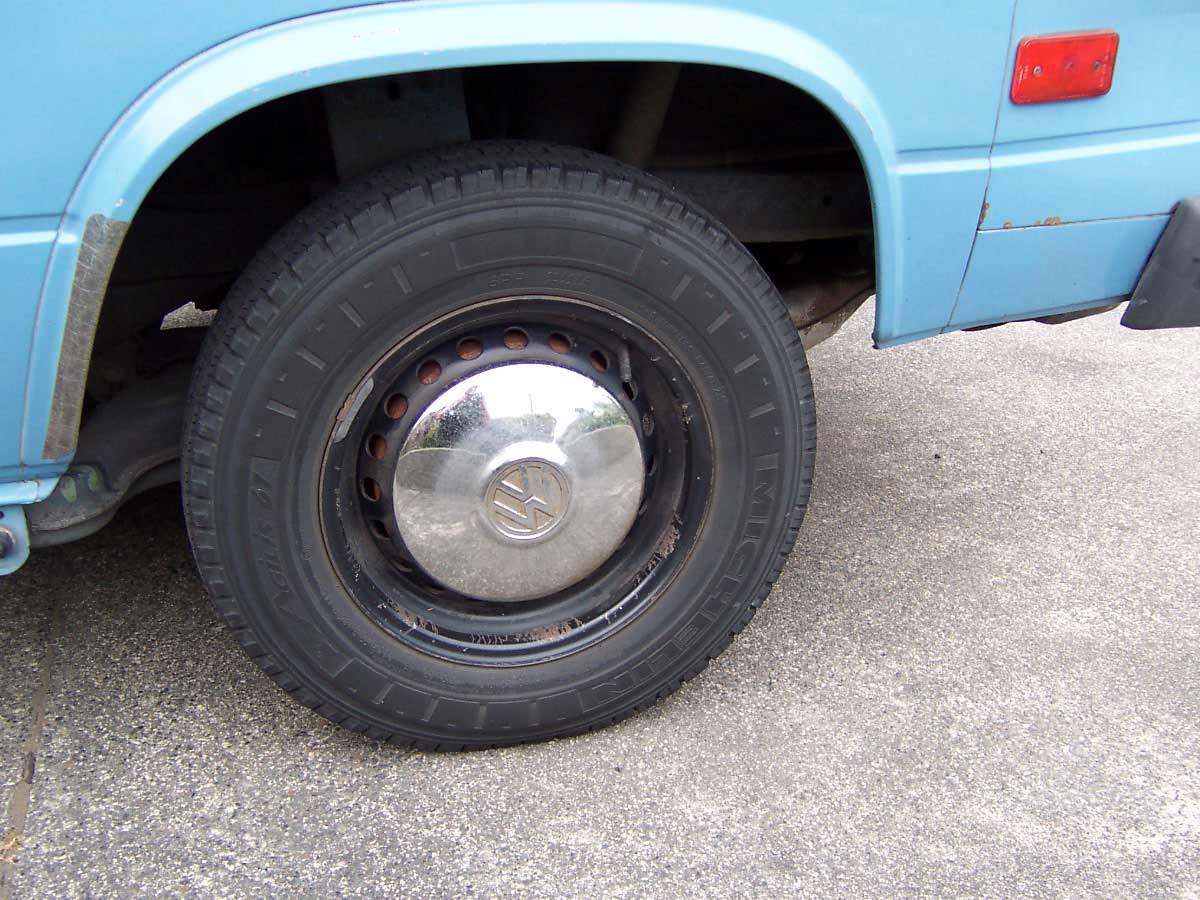

Michelin Agilis 61 - Photos courtesy of Kevin Smith
Product Page at Michelin

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 99 n/a n/a n/a 1709 lbs LRC 54 psi n/a

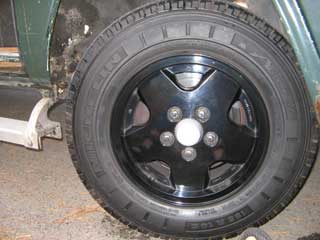

Michelin Agilis 81 (Apr '05) - Photos courtesy of Tom Tuomey
Purchased at Tire Rack

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 102 R 2 poly + 3 steel 2 poly 1875 lbs LRD 65 psi France

Vredestein Comtrac Steel (Jan '01) - Photos courtesy of Troy Wical
Product Page at Vredestein

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 102 R 2 poly + 2 steel + 1 nylon 2 poly 1875 lbs LRD 65 psi Holland

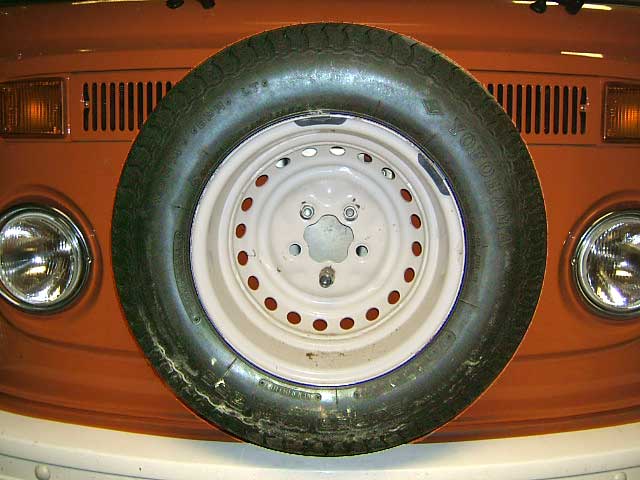

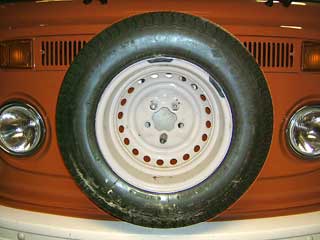

Yokohama Y356 (Mar '06) - Photos courtesy of Ed Woenker and David Lawrence
Purchased at Tire Rack )

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14 LT n/a n/a 2 steel + 2 poly 2 poly 1600 lbs LRC 50 psi Japan

NLA Winter Tires:


Severe Service Emblem. Nokian make the best winter tires, period. See my Nokian tire page for more info.

Nokian Hakkapeliitta CS (Sept '06)
Purchased from TireFactory.net - Product Page at Nokian

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 102 S 2 steel + 2 poly + 1 nylon 2 poly 1873 lbs LRD 65 psi Finland

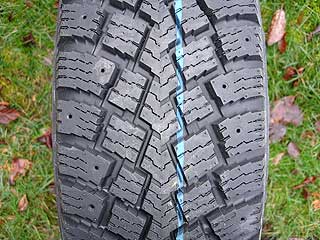

Nokian Hakkapeliitta C2 (Sept '06)
Purchased from TireFactory.net - Product Page at Nokian

Size Load Index Speed Rating Tread plies Sidewall plies Load Range Load Rating Max Pressure Made in
185R14C 102 Q 2 steel + 2 poly + 1 nylon 2 poly 1873 lbs LRD 65 psi Finland
